Description

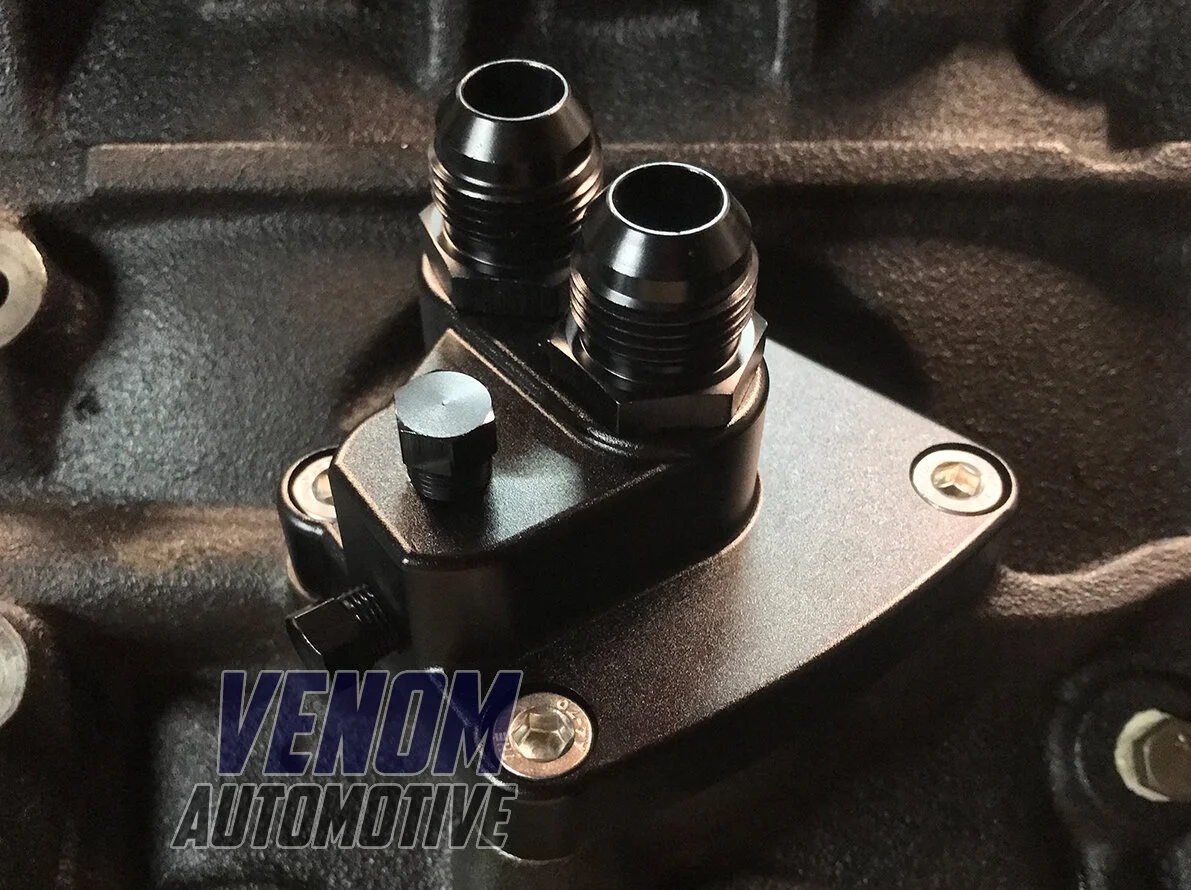

Our RB Series Oil Filter Adapter Plate is based on our very popular UZ-FE adaptor plate. Designed to be bolted to the block rather than generic screw ones, this adaptor provides reliability and peace of mind for years to come.
Made to run twin -10AN lines without impeding oil flow. -8AN or smaller can also be fitted via the M20x1.5mm tapped threads.

This Oil filter adapter also features 2x 1/8” NPT Tapped Ports on the return side to suit turbo oil feeds and additional sensors. NPTs ports are tapped to 7mm depth; additional tapping may be required to suit certain sensors/fittings.

Sensors larger than 1/8” NPT, such as the OE oil temp sensor, will require thread tapping to suit.

Our adaptor plate bolts on, rather than screws on, unlike the 90’s style remote oil filter kits. As such, the standard oil filter extension housing is required, as shown in the pictures. Please select this at checkout if your engine configuration does not have this already installed. Alternatively, it can be sourced from Nissan. PN15213-V0711.

Please note, due to the proximity of the AN fittings, some order style rubber hose with large diameter AN fittings may not fit. Therefore, AN10 braided teflon lines are strongly recommended.

Sizing

Metric M20x1.5mm threads with AN10 Fittings (Included) - Thread sealant recommended.

Included

• 1x Billet CNC'd Adapter Plate

• 3x M8 304 Grade Stainless Bolts

• 2x 1/8NPT Plugs

• 2x AN10 to M20x1.5 Fittings

• 2x O-Rings
