Description

Our Remote Oil Filter Relocation Adapters are now available in two versions. Both are designed to suit -10AN lines for the best possible oil flow.

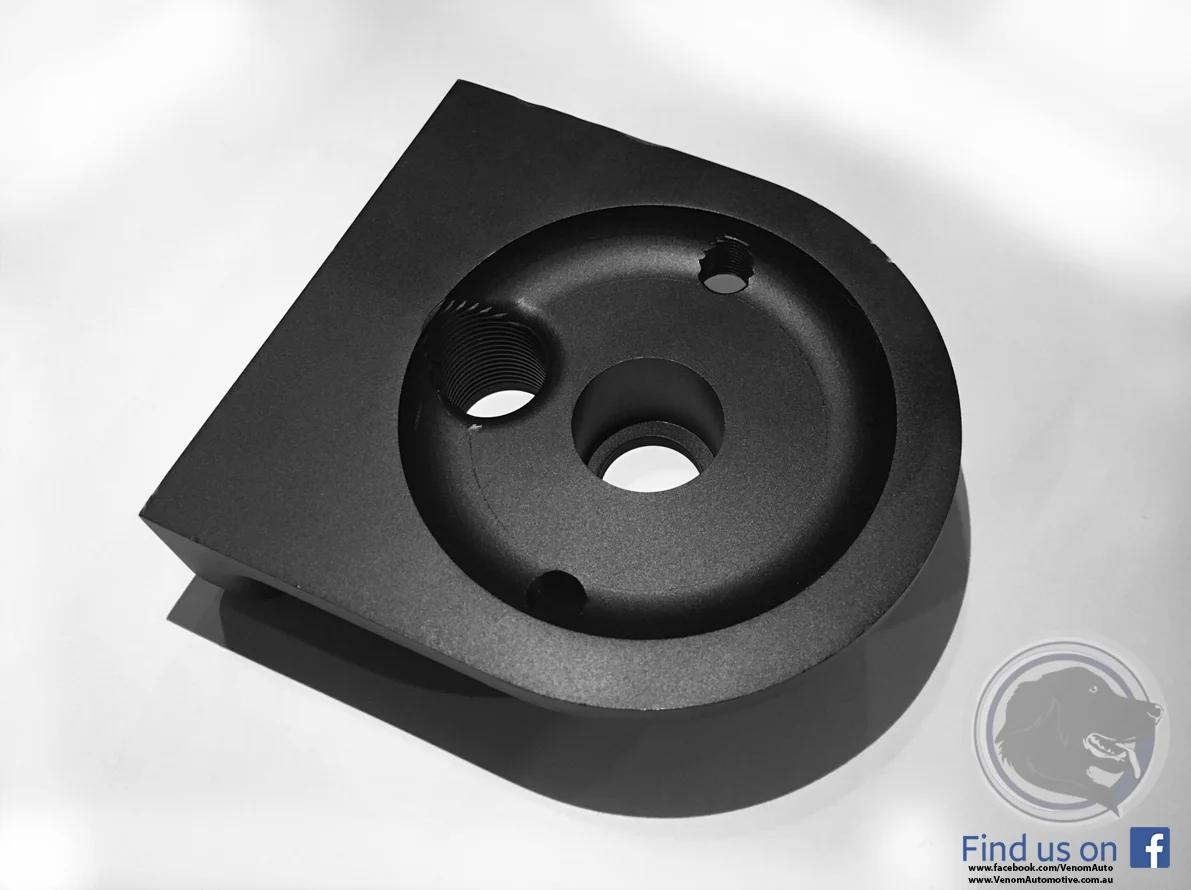

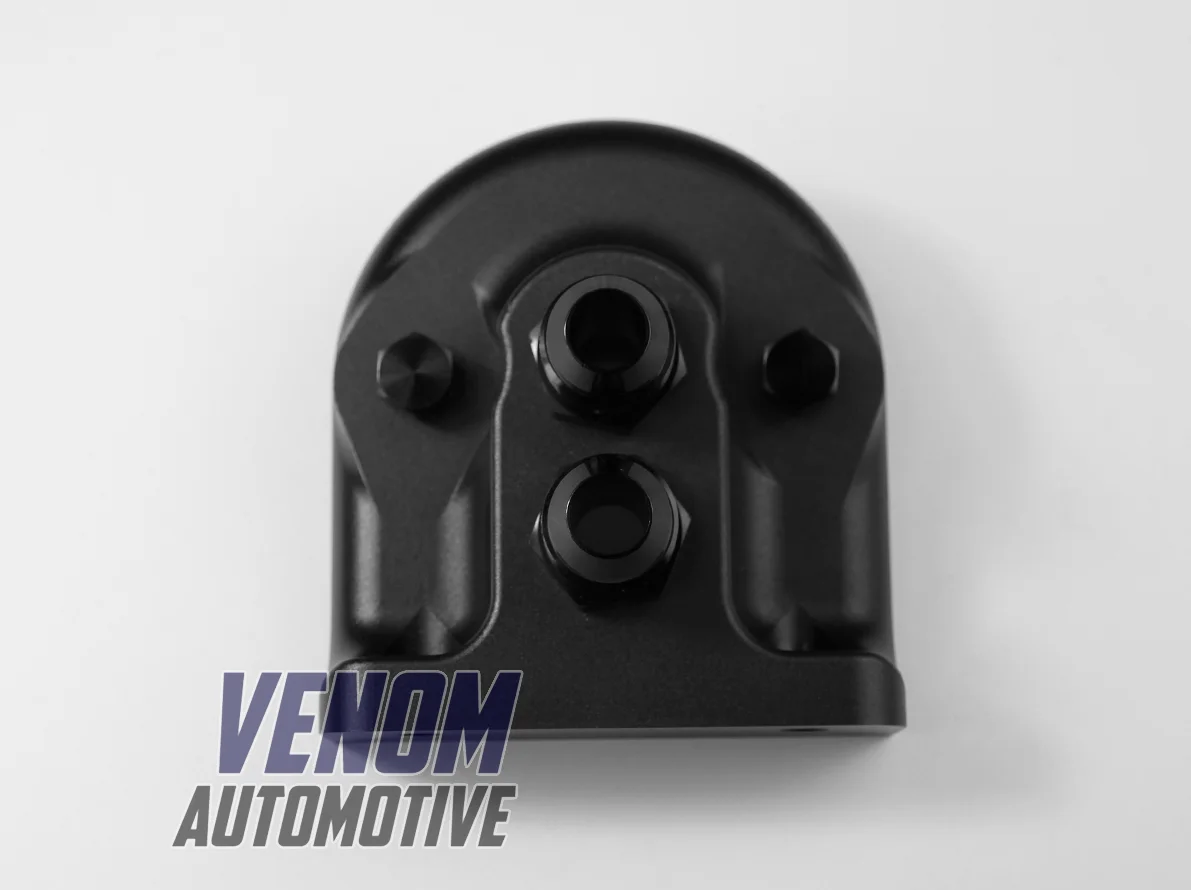

Version 1 (The OG) is a top feed design with an oversized filter. It features twin M20x1.5mm tapped threads and twin 1/8NPT ports for oil feeds and sensors.

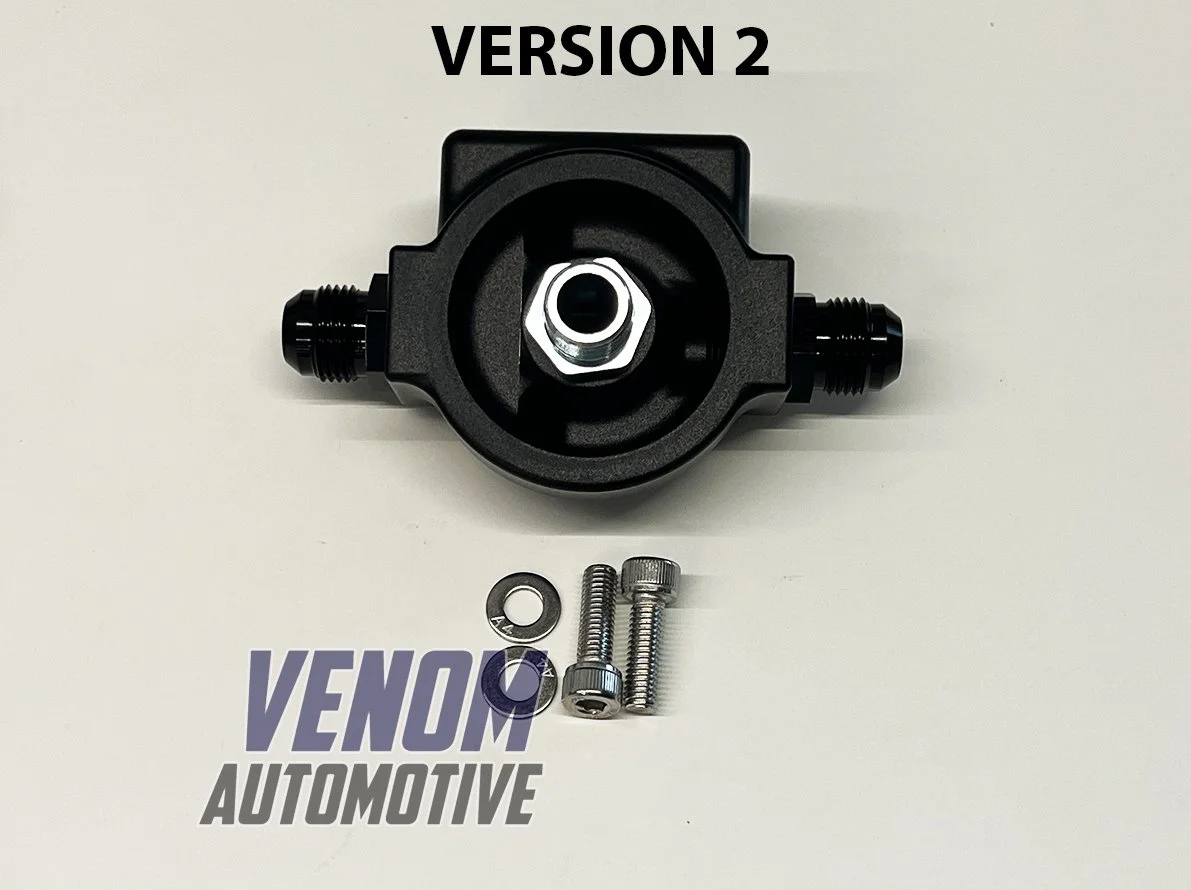

Version 2 (The Newbie) is a side feed design with a “normal” filter size (the same as an OEM 2JZ filter) that allows for fitment in smaller spaces. It does not have NPT sensor ports.

Finish

Both are Machined from Billet 6061 Aluminium - Black Anodised

Sizing

• Version 1

Perfectly suited for Ryco Filters Z178A or Z330. It will also suit any other brand of oil filter with M20x1.5mm threads and an OD between 88 and 92 mm. Oil Filter Not Included.

Universally suitable and is easily mounted using 2 Bolts anywhere you can imagine. Perfect for a whole host of performance vehicles, including but not limited to;

• 2JZ Toyota Supra (2JZ-GTE & 2JZ-GE)

• RB26 Nissan Skyline R32 R33 R34

• RB30 Range in Patrols, VL Commodores etc

• VR30/VR38 Nissan GTR

• 4G63 Mitsubishi Evo

• GM LS1 LS2 LS3 LS7 Holden Commodores, Camaros, Mustangs etc

• 13B/20B Mazda RX7

• F20C Honda S2000

• 1UZ Toyota Soarer

• 1JZ Toyota Chaser

• Full Range of Ford "Barra The World" Engines

• VAG 1.8T (Various VW, Audi, Seat, Skoda)

• S54 / BMW M1, M2 M3 M5 etc

• Version 2

Designed around a Ryco Z418 (the OEM replacement for the 2JZ), it will also suit any other brand of oil filter with 3/4” x 16 threads and an OD seal diameter between 70 and 72 mm. The Oil Filter is Not Included.

It is universally suitable and is easily mounted using 2 Bolts anywhere you can imagine.

Included

• 1x CNC'd Billet Oil Filter Relocation Adapter (Black Anodised)

• 1x M20x1.5mm Oil Filter Adapter (Version 1)

• 1× 3/4” x16mm Oil Filter Adapter (Version 2)

• 2x M20x1.5 to AN10 Fittings Included (Black).

• 2x 1/8 NPT Plug Fittings (Black) - Version 1 ONLY

• 2x M8 316 Grade Stainless Fasteners
