Description

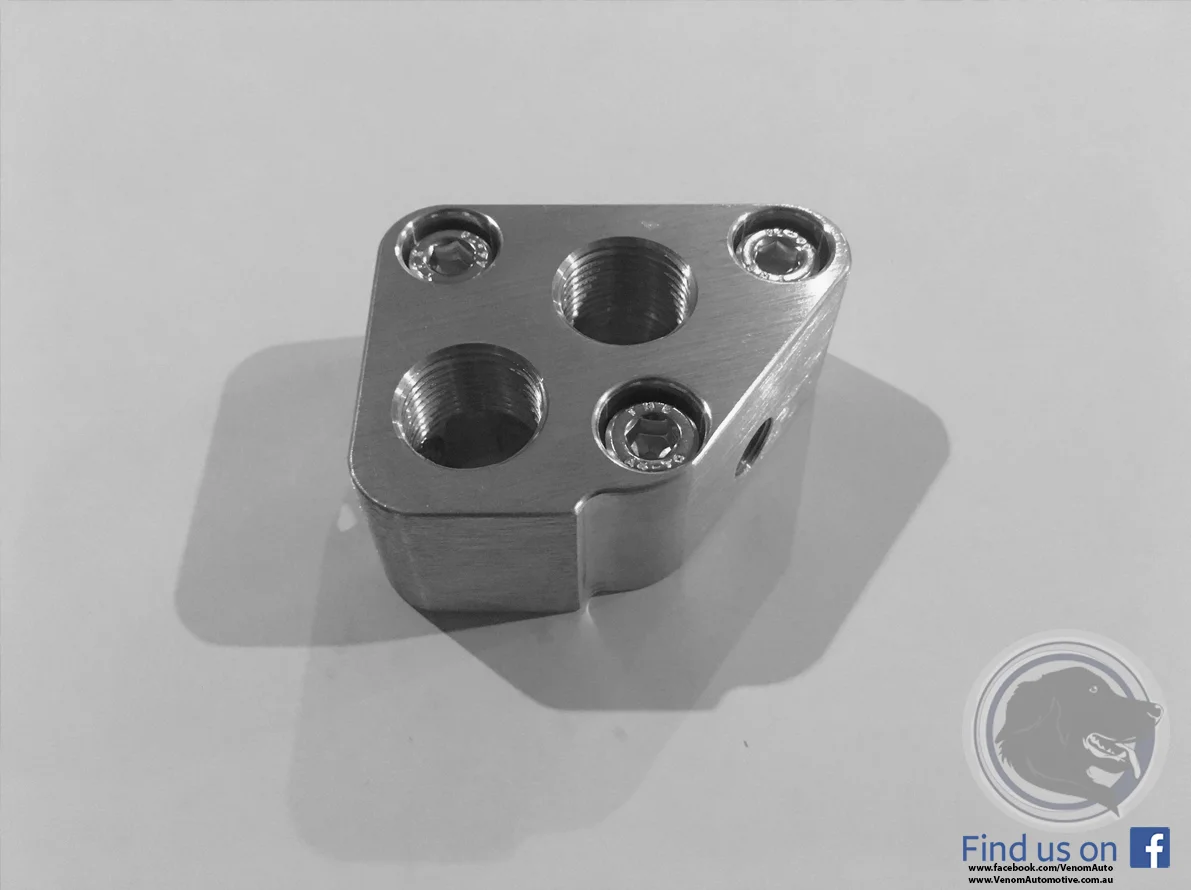

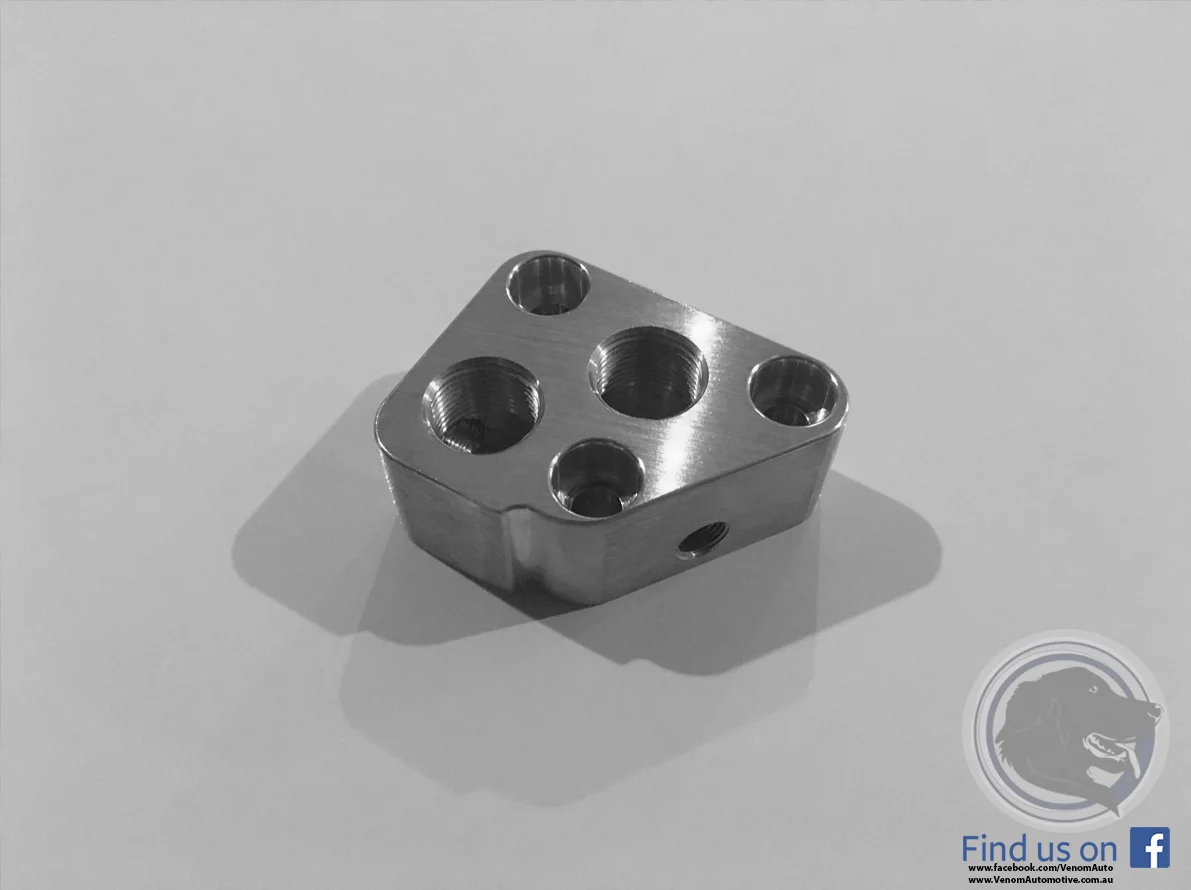

Our Type 2 Oil Filter Adapter Plate is designed to suit 1UZ-FE, 2UZ-FE & 3UZ-FE Engines.
Made to run twin -10AN lines without impeding oil flow. -8AN or smaller can also be fitted.

This Type 2 Style Oil filter adapter also features NPT Tapped Ports on the Feed AND return side to suit oil feeds and additional sensors. NPT ports are tapped to 7mm depth; further tapping may be required for specific sensors/fittings.

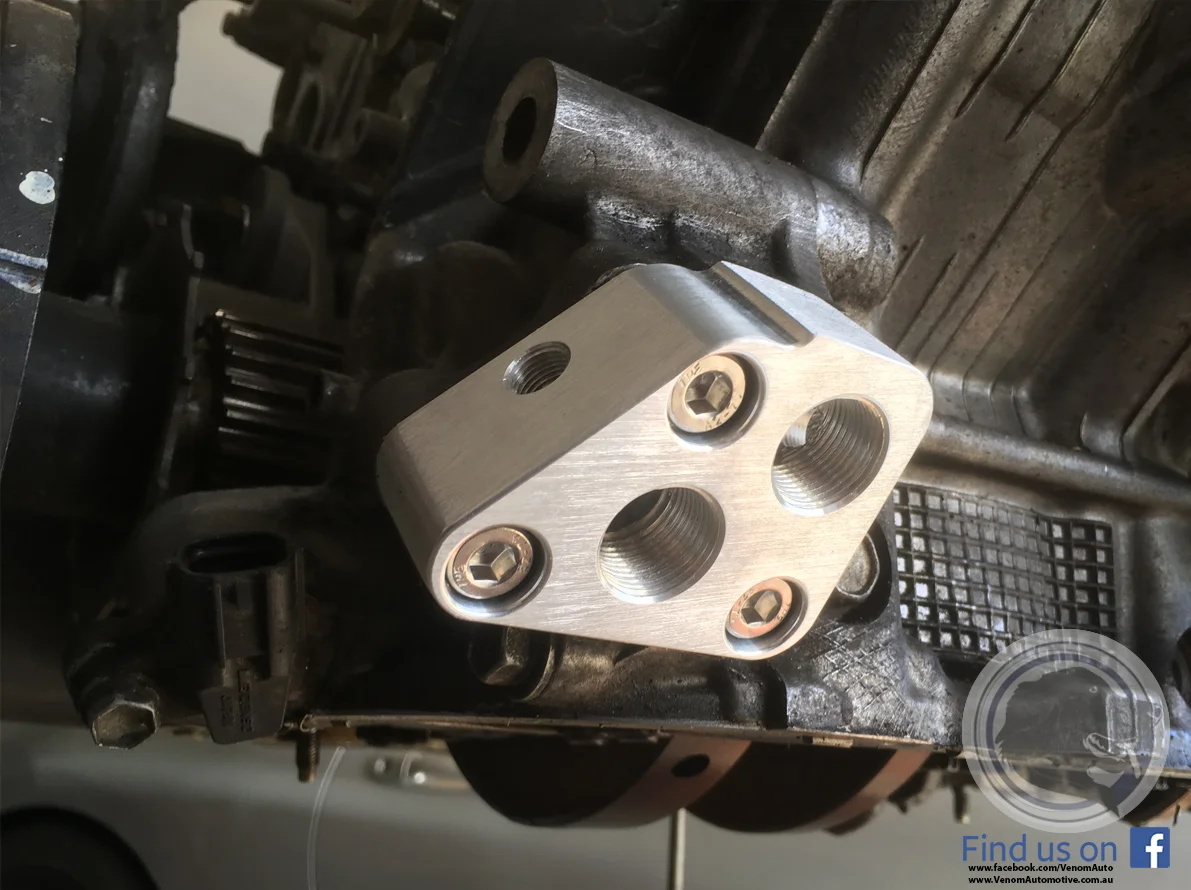

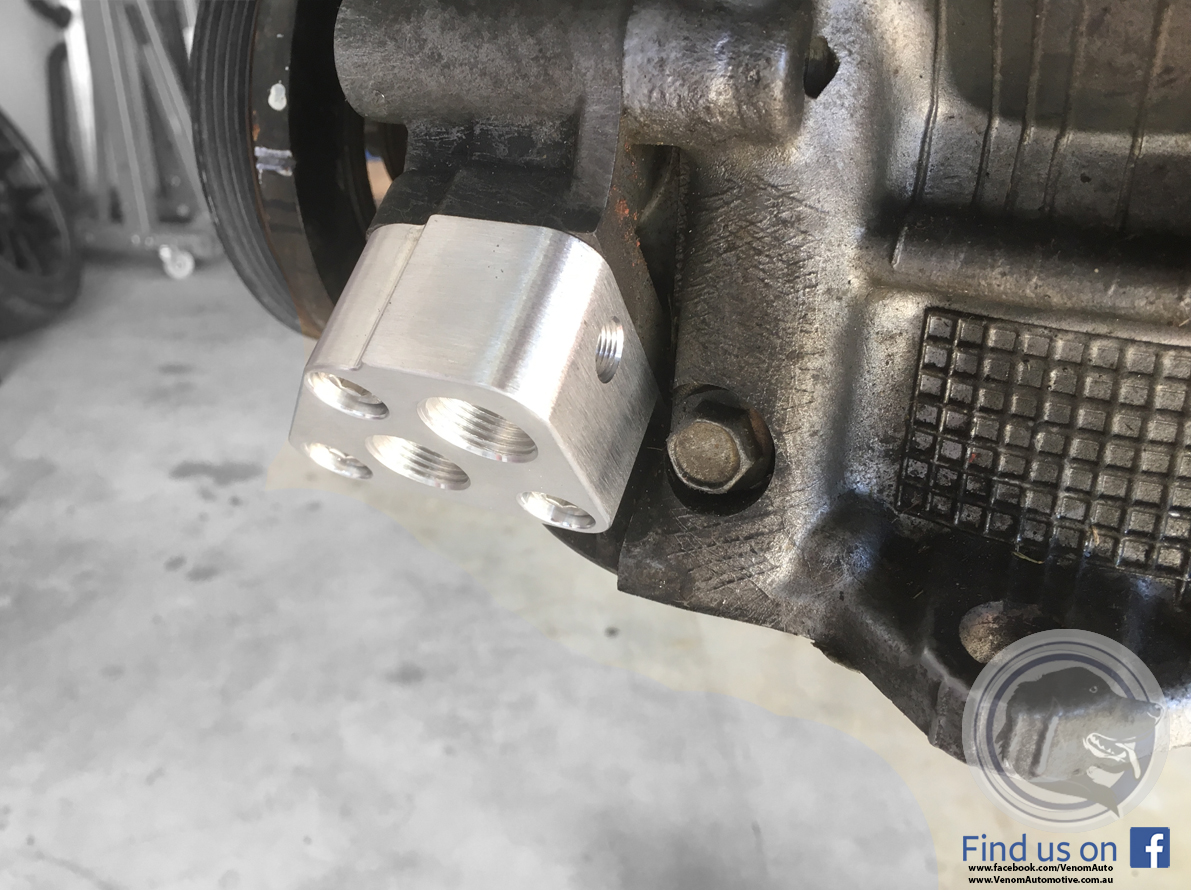

NOTE: Where an Air Conditioning Compressor is still installed, the front 1/8NPT port is not functional, and depending on the model year, some filing may be required to install. There are no issues if the Air Conditioning compressor is removed or relocated.

Sizing

Metric M20x1.5mm threads to suit Speedflow Adapters (PN: 735-10 or 735-08). Speedflow Fittings not included.

Oil Outlet Configuration (select before adding to cart)

• Option 1 - 2x 1/8NPT to inlet & outlet

• Option 2 - 1x 1/4NPT to outlet port, 1x 1/8NPT to inlet port

Finish

• Raw Aluminium (Pictured)

• Media Blasted and Clear Anodised

Included

• 1x Billet CNC'd Adapter Plate

• 3x M8 304 Grade 316 Stainless Bolts

• 1x Genuine Toyota Gasket Seal
